Gates
$300.00

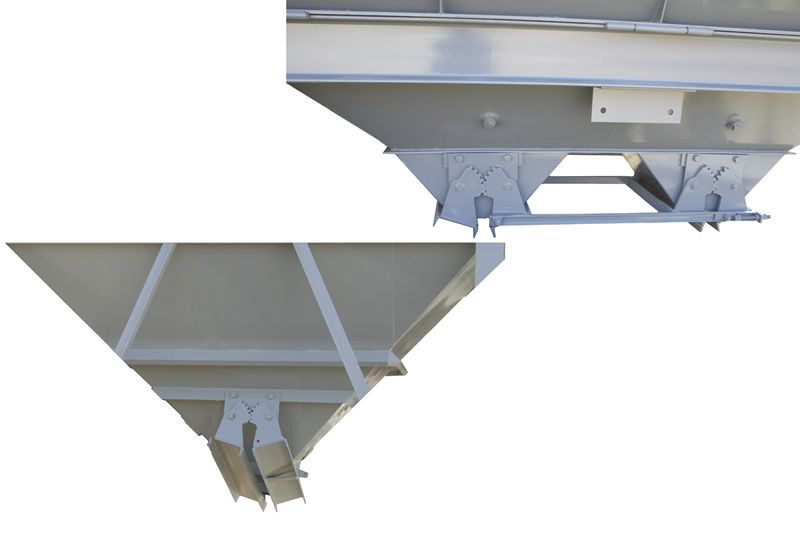

Stephens Manufacturing gates are designed to control material flow in aggregate bin and bat systems, providing reliable start, stop, and discharge control. Custom gates are available in multiple sizes and configurations to suit various system layouts and material types. Please consult our factory 1-800-626-0200.
Description

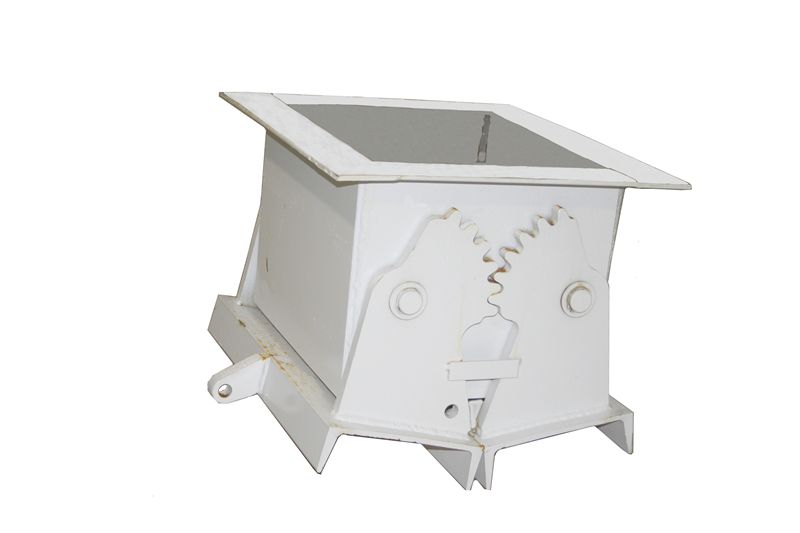

Box Gate
Each gate has(6) 34/” thick gears. Gates are assembled with permanently lubricated, high tensile ally bronze bushing and thrust washer. Bottom of gate is 3/8” thick channel, 1/2” thick at pinch point. The gates are designed to open with a downward motion, eliminating the binding of rock when sliding open and shut. Please call the factory with any questions.
Note: Consult factory other size gates available
Gates are assembled with permanently lubricated, high tensile ally bronze bushing, 18% porous & impregnated with non weeping oil, and thrust washer.
Note: Custom gates available. Please consult our factory 1-800-626-0200
| Item # | Item Name |
| MP-50-121200 | 12 x 12 Box Gate 17” Tall |
| MP-50-141400 | 14 x 14 Box Gate 17” Tall |
| MP-50-151500 | 15 x 15 Box Gate 17” Tall |
| MP-50-161600 | 16 x 16 Box Gate 17” Tall |

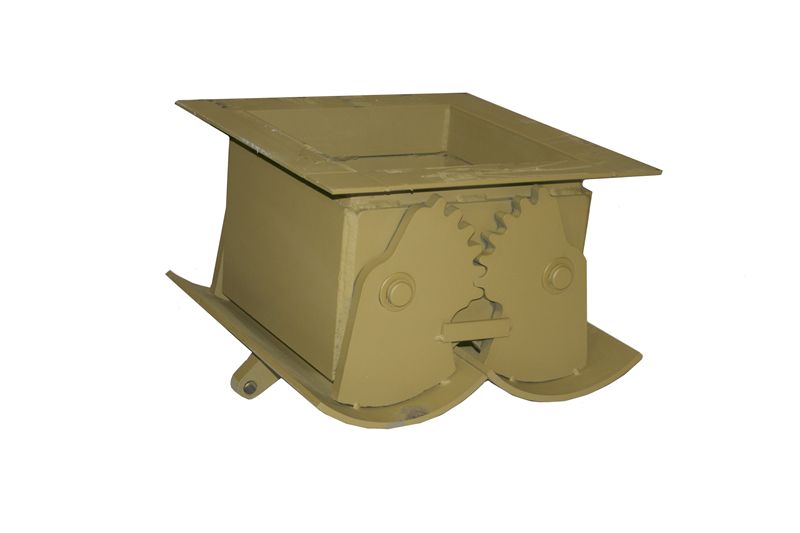

Low Profile Box Gate
Each gate has(6) 34/” thick gears. Gates are assembled with permanently lubricated, high tensile ally bronze bushing and thrust washer. Bottom of gate is 3/8” thick channel, 1/2” thick at pinch point. The gates are designed to open with a downward motion, eliminating the binding of rock when sliding open and shut. Bottom of gate is constructed of segregated high carbon pipe that will have an abrasion resistance a/r steel. Total height 12’.
Note: Custom gates available. Please consult our factory 1-800-626-0200
Skelton Gate
Each gate has(6) 34/” thick gears. Gates are assembled with permanently lubricated, high tensile ally bronze bushing and thrust washer. Bottom of gate is 3/8” thick channel, 1/2” thick at pinch point. The gates are designed to open with a downward motion, eliminating the binding of rock when sliding open and shut. Bottom of gate is constructed of segregated high carbon pipe that will have an abrasion resistance a/r steel. Total height 12’.
Note: Custom gates available. Please consult our factory 1-800-626-0200
| Item # | Item Name |
| MP-50-121200 | 12 x 12 Box Gate 17” Tall |
| MP-50-141400 | 14 x 14 Box Gate 17” Tall |
| MP-50-151500 | 15 x 15 Box Gate 17” Tall |
| MP-50-161600 | 16 x 16 Box Gate 17” Tall |

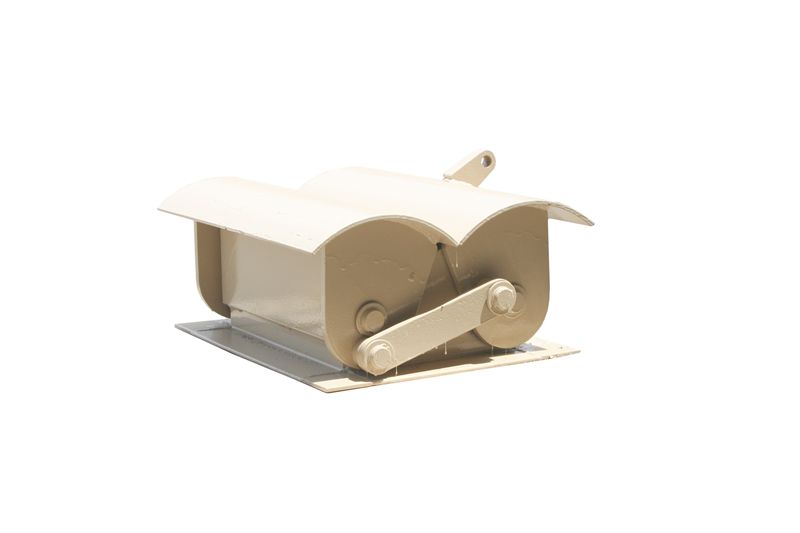

Super Low Profile Gate
Each gate has(6) 34/” thick gears. Gates are assembled with permanently lubricated, high tensile ally bronze bushing and thrust washer. Bottom of gate is 3/8” thick channel, 1/2” thick at pinch point. The gates are designed to open with a downward motion, eliminating the binding of rock when sliding open and shut. Bottom of gate is constructed of segregated high carbon pipe that will have an abrasion resistance a/r steel. Total height 10”.
Note: Custom gates available. Please consult our factory 1-800-626-0200
| Item # | Item Name |
| MP-50-121200 | 12 x 12 Box Gate 17” Tall |
| MP-50-141400 | 14 x 14 Box Gate 17” Tall |
| MP-50-151500 | 15 x 15 Box Gate 17” Tall |
| MP-50-161600 | 16 x 16 Box Gate 17” Tall |
